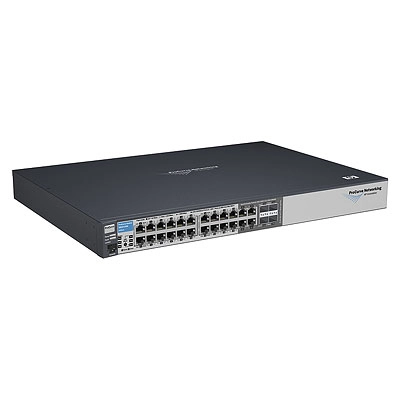

HPE E2810-24G Switch. Switch type: Managed. Aantal basis-switching RJ-45 Ethernet-poorten: 24. MAC-adrestabel: 8000 entries. Power over Ethernet (PoE)
Correctheid van de afbeelding is niet gegarandeerd, baseer s.v.p. je aankoop niet alleen op de afbeelding. Lees hier meer
Belangrijkste kenmerken:
- Managed
- Aantal basis-switching RJ-45 Ethernet-poorten: 24
- MAC-adrestabel: 8000 entries
- Power over Ethernet (PoE)
HPE E2810-24G Switch, Managed, Power over Ethernet (PoE)
Beheerfuncties
Switch type
Managed
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Data-uitwisseling
MAC-adrestabel
8000 entries
Throughput
up to 35.7 million pps
Max. overdrachtssnelheid
1 Gbit/s
Packet buffergeheugen
64 MB
Beveiliging
MAC adres filtering
Ja
Protocollen
Wissel protocols
Ethernet
Ondersteunde netwerkprotocollen
RFC 783 TFTP; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLANs; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 3176 sFlow
Ondersteunde protocollen
Network Management
Device Management
MIBs
General Protocols
IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL); SSHv2 Secure Shell
IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; SNMPv1/v2c/v3
IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 951 BOOTP; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1573 SNMP MIB II; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; R
Design
Veiligheid
cUL (CSA 22.2 No. 60950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 60950
Elektromagnetische compatibiliteit
FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3
Prestatie
Type processor
Ja
Processormodel
Broadcom BCM5836
Frequentie van processor
264 MHz
Intern geheugen
64 MB
Flash memory
16 MB
Energie
Stroom
1 A
Ingangsspanning
100-127 / 200-240 VAC
Stroomverbruik (typisch)
48 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Overige specificaties
Beheerplatform
HP PCM+; HP PCM; command-line interface; Web browser; configuration menu; out-of-band management
Latentie
Latency: < 5.6 µs (FIFO 64-byte packets)
Afmetingen (B x D x H)
322,6 x 442 x 43,2 mm
Connectiviteitstechnologie
Bedraad
Geheugen en processor
Processor: MIPS @ 264 MHz, 16 MB flash, packet buffer size: 0.75 MB, 64 MB SDRAM
Stroomvoorziening
100-127 VAC/200-240 VAC; 50/60 Hz
HDD rotatiesnelheid
7200 RPM
Netwerkfuncties
Ethernet, Fast Ethernet, Gigabit Ethernet
Montage
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Beheer op afstand
command-line interface; Web browser; configuration menu; out-of-band management
Frequentie
50 / 60 Hz
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Gewicht en omvang
Gewicht
3,27 kg
Overige specificaties
Aansluitingen
20 auto-sensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Relatieve luchtvochtigheid bij opslag (geen condensering)
15 - 95 procent
Elektromagnetische emissie
FCC Class A; EN55022/CISPR-22 Class A; VCCI Class A; IEC/EN61000-3-2; IEC/EN61000-3-3
Elektromagnetische immuniteit
EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Management productnaam
ProCurve Manager Plus; ProCurve Manager
Gewicht (imperiaal)
7.21 lb.
Hoogte, in bedrijf (brits/amerikaans)
up to 10000 ft.
UNSPSC-code
43222612
e: Lifetime, advance replacement, next business day
